Adobe Edge Delivery Services - Full Guide for Devs, Architects and AI

Author: Tom Cranstoun

Analysis of Franklin/Edge Delivery Services Document Transformation From Document to HTML: The Transformation Process

To maintain perfect Core Web Vitals scores, all code changes must be integrated into the browser output. The current workflow of patching code is fragile and makes upgrading difficult. Modifying boilerplate code is risky, creates fragile implementations, and can negatively impact Core Web Vitals scores. The blog post explains everything that a developer, architect or AI might want to know. In one page

The Developer, Architect or AI Guide to Edge Delivery Services (EDS): From Document to Website

Introduction

Edge Delivery Services (EDS, formerly known as Franklin or Project Helix) represents a paradigm shift in content management systems. Unlike traditional CMSs that require content authors to adapt to the system's rigid structures, EDS flips this relationship—the system adapts to how authors naturally create content. This comprehensive guide examines how EDS transforms documents into high-performance websites, with a special focus on extending functionality without modifying core files.

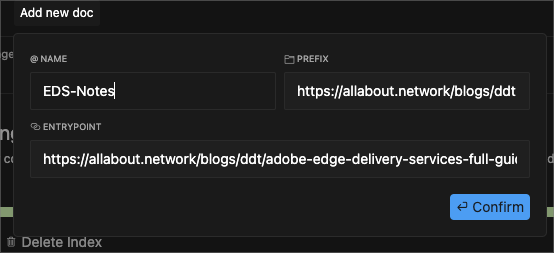

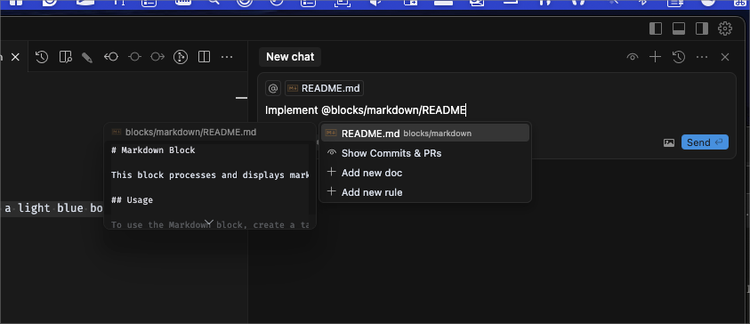

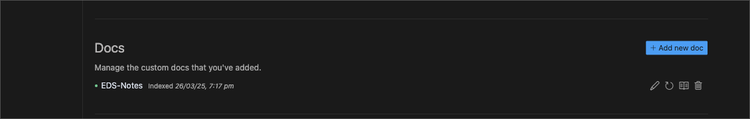

This post formatted as markdown can assist in building EDS Components using AI tools like cursor and claude.

Core Philosophy and Requirements

The Content-First Philosophy

At its core, EDS embraces a content-first approach that radically simplifies the authoring process. Content creators work in familiar tools like Documents or Microsoft Word, while the system handles the technical transformation into structured web pages. This separation of concerns allows:

As a developer working with EDS, understanding this philosophy is crucial—your job isn't to build a website from scratch, but to enhance how documents transform into web experiences.

Development Requirements and Constraints

Before diving into EDS, it's important to understand its core development philosophy and constraints. These aren't limitations but deliberate design choices that promote simplicity, performance, and maintainability:

These requirements enable EDS to achieve perfect Core Web Vitals scores (100/100/100/100) by eliminating the overhead traditionally associated with modern web development. This approach is increasingly rare but remarkably effective—letting developers focus on solving real problems rather than managing toolchains.

The Document Transformation Journey

Let's follow a document's complete journey from creation to final rendered webpage. This transformation process is at the heart of how EDS works, and understanding it will help you see where and how to extend functionality as a developer.

Stage 1: Document Creation

The journey begins with a content author creating or editing a document in Google Docs (or Microsoft Word). In this familiar environment, authors naturally structure their content using:

Authors can also use EDS-specific features:

For example, a typical document might include a hero section with a main heading, followed by several content sections divided by horizontal rules, and special blocks created with tables.

Stage 2: Document to Markdown Conversion (Server-Side)

When an author presses "Preview" in the Sidekick tool, the transformation begins:

Document Retrieval

Structural Analysis

Markdown Conversion

Markdown Storage

The Markdown representation serves as an intermediate format that bridges the gap between the document-based authoring experience and web delivery.

Stage 3: Markdown to Initial HTML Generation (Server-Side)

Once the Markdown is prepared, EDS transforms it into basic HTML:

HTML Structure Creation

Metadata Application

Section Organization

Block Identification

This initial HTML is minimal and lacks styling or interactive features, but it contains all the content and structural information needed for the next steps.

Just a little bit more detail might help.

Table Transformation: From Docs to Div Elements

One of the most important structural transformations in the EDS pipeline involves how tables created in Documents are converted into HTML div elements. Understanding this process is crucial for developers creating blocks that interact with table-based content.

Table Structure in Documents

In Documents, authors create tables with rows and columns. These tables have a semantic structure consisting of:

Authors often use tables for:

The Transformation Process

When an author creates a table in Documents and publishes it through EDS, the following transformation process occurs:

  1. Document Retrieval: The system accesses the Google Doc via API
  2. Table Identification: Tables in the document are identified and parsed
  3. Structure Conversion: The table structure is converted into a nested div structure

How Tables Become Divs

A table structured in Documents:

| Block Name |            |            |
|------------|------------|------------|
| Cell 1     | Cell 2     | Cell 3     |
| Cell 4     | Cell 5     | Cell 6     |

Will be transformed into this nested div structure in the final HTML:

 <div class="block-name">
          <div>
            <div>Cell 1</div>
            <div>Cell 2</div>
            <div>Cell 3</div>
          </div>
          <div>
            <div>Cell 4</div>
            <div>Cell 5</div>
            <div>Cell 6</div>
          </div>
        </div>
</div>

Recognizing Table-Originated Content in JavaScript

When writing JavaScript for an EDS block that processes table-originated content, you'll need to identify the div structure that was originally a table. Here's how to identify and work with these structures:

export default function decorate(block) {

  // The block will contain a div structure that was originally a table
  // Each row of the original table is a direct child div of the block
  const rows = block.children;

  // Each cell of the original table is a child of the row div

  for (let i = 0; i < rows.length; i++) {
    const row = rows[i];
    const cells = row.children;

      // Process data rows

      for (let j = 0; j < cells.length; j++) {
        const cellContent = cells[j].textContent.trim();
        // Process cell content
      }
    }
  }
}

Special Considerations for Table Content

  1. Lists in Tables: When an author creates a bulleted or numbered list inside a table cell in Documents, it will be transformed into proper <ul> or <ol> elements inside the div that represents that cell.
  2. Rich Text in Tables: Rich text formatting (bold, italic, links) within table cells is preserved in the resulting divs.
  3. Images in Tables: Images placed inside table cells will be wrapped in <picture> elements within the corresponding div.
  4. Complex Content: For cells containing multiple paragraphs or mixed content types, the structure is preserved within the div representing that cell.

Working with Block-Specific Tables

In EDS, tables are used to define special block components. For example, a table with "Columns" in the first cell would be transformed into a columns block. When writing JavaScript for such blocks, you can rely on the consistent transformation from table to div structure.

By understanding this table-to-div transformation process, you can effectively develop blocks that leverage Document tables as a content creation mechanism while maintaining the performance and flexibility advantages of EDS's div-based rendering approach.

Lets us get a bit more specific

Stage 4: Initial HTML Delivery and Browser Processing

The server delivers this basic HTML to the browser, where the transformation continues:

Initial Browser Rendering

Core Script Loading

DOM Enhancement (Client-Side JavaScript)

Block Loading and Processing

During this phase, the HTML undergoes significant transformation through JavaScript. What starts as basic markup becomes rich, interactive content with proper styling and behavior.

Stage 5: Final DOM Transformation and Rendering

The final stage involves completing the page enhancement with dramatic transformations to the DOM structure:

Block Status Tracking and Wrapper Elements

When examining the browser-rendered DOM, you'll see significant differences from the raw HTML output. For example, a simple block:

<!-- Initial server-rendered HTML -->

<div class="hero block" data-block-name="hero">
  <div>
    <picture>...</picture>
  </div>
  <div>
    <h1>Page Title</h1>
  </div>
</div>

Gets transformed into:

<!-- Final browser-processed DOM -->

<div class="hero-wrapper">
  <div class="hero block" data-block-name="hero" data-block-status="loaded">
    <div>
      <picture>...</picture>
    </div>
    <div>
      <h1>Page Title</h1>
    </div>
  </div>
</div>

Note the key changes:

Section Enhancement

Sections undergo similar transformations:

<!-- Initial server-rendered HTML -->
<div class="section">
  <div>Content here</div>
</div>

Becomes:

<!-- Final browser-processed DOM -->
<div class="section hero-container" data-section-status="loaded">
  <div class="default-content-wrapper">
    Content here
  </div>
</div>

Key transformations include:

Button Styling Enhancement

Simple links written by authors:

<!-- Initial link -->
<p><a href="https://example.com">Get in touch</a></p>

Are automatically enhanced into styled buttons:

<!-- Enhanced button -->
<p class="button-container">
  <a href="https://example.com" class="button primary" target="_blank" title="Get in touch">Get in touch</a>
</p>

The system automatically:

Media Optimization

Perhaps the most dramatic transformation happens with images. A simple image in a document:

<!-- Basic image reference -->
<img src="./image.png" alt="Description">

Is transformed into a fully optimized, responsive picture element:

<!-- Optimized responsive image -->
<picture>
  <source type="image/webp" srcset="./image.png?width=2000&format=webply&optimize=medium" media="(min-width: 600px)">
  <source type="image/webp" srcset="./image.png?width=750&format=webply&optimize=medium">
  <source type="image/png" srcset="./image.png?width=2000&format=png&optimize=medium" media="(min-width: 600px)">
  <img loading="lazy" alt="Description" src="./image.png?width=750&format=png&optimize=medium" width="1600" height="400">
</picture>

This sophisticated transformation:

Head Section Transformation

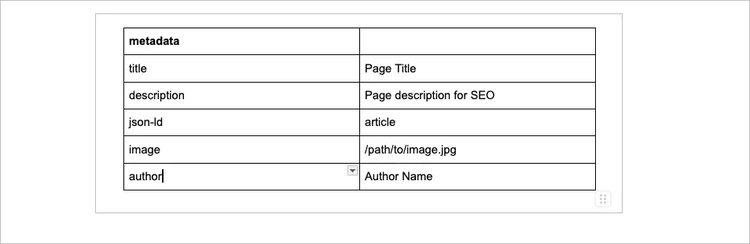

The metadata table from the Google Doc:

Is expanded into a comprehensive set of SEO and social sharing tags:

<!-- Enhanced head section -->

<title>My Page Title</title>
<meta name="description" content="This is a description of my page">
<meta property="og:title" content="My Page Title">
<meta property="og:description" content="This is a description of my page">
<meta property="og:image" content="/path/to/image.jpg">
<meta property="og:url" content="https://example.com/current-path">
<meta name="twitter:card" content="summary_large_image">
<meta name="twitter:title" content="My Page Title">
<meta name="twitter:description" content="This is a description of my page">
<meta name="twitter:image" content="/path/to/image.jpg">
<link rel="canonical" href="https://example.com/current-path">
<meta name="author" content="Author Name">

This transformation creates all the metadata needed for proper SEO and social sharing from a simple table in the document.

Resource Loading Optimization

The system automatically applies sophisticated resource loading strategies:

<!-- Script and style loading -->

<script src="/scripts/aem.js" type="module"></script>
<script src="/scripts/scripts.js" type="module"></script>
<link rel="stylesheet" href="/styles/styles.css">
And component-specific resources are loaded only when needed:
<link rel="stylesheet" href="/blocks/header/header.css">
<link rel="stylesheet" href="/blocks/footer/footer.css">

The hero image loading is specifically optimized for performance:

<!-- Before optimization -->

<img loading="lazy" alt="Hero image" src="...">

<!-- After optimization -->

<img loading="eager" alt="Hero image" src="...">

This change ensures the above-the-fold hero image loads as early as possible for better LCP (Largest Contentful Paint) performance.

Through these multiple transformations, what started as a simple document becomes a fully-featured, high-performance web page with sophisticated optimization techniques applied automatically.

This multi-stage process allows content authors to focus on content while the system handles the technical implementation, creating a clean separation of concerns that is central to EDS's document-based authoring philosophy.

EDS's Three-Phase Loading Strategy

A cornerstone of EDS's performance optimization is its sophisticated three-phase loading strategy, often referred to as E-L-D (Eager-Lazy-Delayed). This strategy is key to maintaining perfect Core Web Vitals scores (100/100/100/100) by carefully managing resource loading.

Phase E (Eager)

Purpose: Loads critical content needed for Largest Contentful Paint (LCP)
Timeline: Begins immediately on page load
Components:

It's recommended to keep the aggregate payload before LCP below 100KB for optimal performance. This stringent requirement ensures pages load quickly even on slower connections.

In the code, this is implemented in scripts.js:

async function loadEager(doc) {
  document.documentElement.lang = 'en';
  decorateTemplateAndTheme();
  const main = doc.querySelector('main');
  if (main) {
    decorateMain(main);
    document.body.classList.add('appear');
    await loadSection(main.querySelector('.section'), waitForFirstImage);
  }

  sampleRUM.enhance();

  try {
    // if desktop (proxy for fast connection) or fonts already loaded, load fonts.css
    if (window.innerWidth >= 900 || sessionStorage.getItem('fonts-loaded')) {
      loadFonts();
    }
  } catch (e) {
    // do nothing
  }
}

Note how it only loads the first section and waits for the first image before proceeding. This targeted approach ensures critical content appears quickly.

Phase L (Lazy)

Purpose: Loads important but non-critical elements
Timeline: Begins after first section is loaded
Components:

The implementation in scripts.js shows this phased approach:

async function loadLazy(doc) {
  const main = doc.querySelector('main');
  await loadSections(main);
  const { hash } = window.location;
  const element = hash ? doc.getElementById(hash.substring(1)) : false;
  if (hash && element) element.scrollIntoView();
  loadHeader(doc.querySelector('header'));
  loadFooter(doc.querySelector('footer'));
  loadCSS(`${window.hlx.codeBasePath}/styles/lazy-styles.css`);
  loadFonts();
}

This function loads all remaining sections, header, footer, and non-critical CSS only after the eager phase completes.

Phase D (Delayed)

Purpose: Handles lowest-priority elements
Timeline: Begins after a 3-second delay
Components:

This implementation is deceptively simple:

function loadDelayed() {
  // eslint-disable-next-line import/no-cycle
  window.setTimeout(() => import('./delayed.js'), 3000);
  // load anything that can be postponed to the latest here
}

The 3-second delay is crucial—it ensures the main content is fully loaded and interactive before any non-essential scripts run. As the documentation notes: "The delayed phase should be at least three seconds after the LCP event to leave enough time for the rest of the experience to get settled."

This is where teams often add their analytics, personalization, cookie consent, and other secondary functionality:

// In delayed.js
// Add analytics

(function loadAnalytics() {
  // Load analytics script
  const script = document.createElement('script');
  script.src = 'https://www.googletagmanager.com/gtag/js?id=UA-XXXXXXXX-X';
  script.async = true;
  document.head.appendChild(script);

  // Initialize analytics

  window.dataLayer = window.dataLayer || [];
  function gtag() { dataLayer.push(arguments); }
  gtag('js', new Date());
  gtag('config', 'UA-XXXXXXXX-X');
})();

// Add cookie consent banner

(function loadCookieConsent() {
  // Cookie consent implementation
})();

This E-L-D pattern ensures the most critical content loads quickly for good user experience, while deferring less important resources to maintain performance scores. It's a key reason why EDS sites can consistently achieve perfect Lighthouse scores even while incorporating sophisticated functionality.

Core Components of Edge Delivery Services

The EDS system relies on three core JavaScript files that orchestrate the page loading and enhancement process:

aem.js

This is the foundation of EDS functionality, providing utility functions and core behavior. Without aem.js, your EDS site would be static and unresponsive. Key components include:

scripts.js

This file orchestrates the page loading process with the three phases described above:

delayed.js

A simple file meant for custom code that should load after a delay:

// add delayed functionality here

This file is intentionally minimal, serving as a location where developers can add non-critical functionality without modifying the core files.

Understanding Blocks in EDS

Blocks are the fundamental building units for custom functionality in EDS. They allow documents to include specialized components and layouts while maintaining the content-first philosophy that makes EDS unique.

Block Creation in Documents

Authors create blocks using tables in the document:

For example, a columns block in a Google Doc might look like this:

| Columns | | | -------------------- | --------------------- | | Text in first column | Text in second column |

When authors want a variation, they simply add it in parentheses:

| Columns (dark, wide) | | | -------------------- | ------------- | | Left content | Right content |

The document structure is transformed into HTML, with the table element removed and replaced with appropriate divs and semantic elements.

Autoblocking in Detail

Beyond manual block creation via tables, EDS offers "autoblocking" — a system where the platform automatically applies styling and structure to content from Documents without requiring developers to create custom components for every scenario.

Here's how autoblocking works:

For example, when an author includes an image followed by a heading at the beginning of a document, the autoblocking system might automatically convert this into a hero block without the author needing to create a table.

This is configured in the buildAutoBlocks function in scripts.js:

function buildAutoBlocks(main) {
  const h1 = main.querySelector('h1');
  const picture = main.querySelector('picture');

  if (h1 && picture && (h1.compareDocumentPosition(picture) & Node.DOCUMENT_POSITION_PRECEDING)) {

    const section = document.createElement('div');
    section.append(buildBlock('hero', { elems: [picture, h1] }));
    main.prepend(section);
  }
}

Autoblocking allows EDS to provide a rich web experience while minimizing the use of tables in documents, which can interrupt the reading flow for authors.

Here are several paragraphs you can add to the EDS (Edge Delivery Services) rules in the knowledge base to explain the bullet point behavior and validation best practices:

Handling Bullet Points in EDS

When working with bullet points in Edge Delivery Services, it's important to understand how Document content is transformed into HTML. EDS will generate different HTML structures for bullet points depending on how the author formats them in the source document.

If bullet points are created as a continuous list in the Document, EDS generates a single <ul> element containing multiple <li> elements. However, if the author includes blank lines between bullet points, EDS will generate separate <ul> elements, each containing a single <li> element. Your code should be flexible enough to handle both structures.

The most robust approach is to query for all <li> elements directly rather than making assumptions about the enclosing <ul> structure. This allows your block to work consistently regardless of the author's formatting choices in the source document.

Block Validation Best Practices

When developing custom blocks for EDS, it's unnecessary to check if a block has the correct class name or structure within your block's JavaScript. The system only calls your block's decorate function for elements that match your block's name. By the time your JavaScript executes, you can be certain you're working with the correct block type.

Validating whether the HTML element is the expected block type (e.g., checking for a class name or specific structure) is redundant and can lead to false negatives if the structure changes. Instead, focus your validation on ensuring the block contains the necessary content for your functionality, such as checking for required rows or data points.

This approach makes your code more concise and less brittle in the face of minor HTML structure changes that might occur as the EDS platform evolves or as authors create content with different formatting choices.

Edge Delivery Services (EDS): Icon System and SVG Handling

Understanding the EDS Icon System

Edge Delivery Services provides an elegant system for incorporating SVG icons into content, allowing authors to work in document formats while the system handles all technical implementation details.

Icon Syntax and Transformation

When content authors place an item name between two colons like :training: in their document, EDS transforms this pattern into structured HTML markup:

<div><span class="icon icon-training"></span></div>

This simple syntax abstracts away HTML complexity server-side during the document-to-HTML conversion process.

Processing Flow

When EDS encounters the icon pattern:

  1. The system identifies the icon name (the text between colons)
  2. It creates a <span> element with two key classes:
    • icon (indicates this is an SVG icon requiring special handling)
    • icon-{name} (identifies which specific icon to use, e.g., icon-training)
  3. EDS looks for the corresponding SVG file (e.g., training.svg) in the root icons folder
  4. During final rendering, the span is replaced with an image tag pointing to the fully qualified domain:

<img src="https://yourdomain.com/icons/training.svg" alt="Training icon">

Contextual Awareness

EDS demonstrates sophisticated contextual awareness when handling icons. When an icon appears within a content block with specific meaning (like a slide or illustration), the system enhances the markup with additional context:

<h2 class="slide-title">How AI Generates Text</h2>

<p><span class="icon icon-generates"><img data-icon-name="eulersnumber" src="/icons/generates.svg" alt="" loading="eager"></span></p>

Benefits for Content Authors and Developers

For Content Authors

For Developers

Implementation Notes

When implementing this system in your EDS project:

  1. Create an /icons/ directory at the root of your project, if using boilerplate its there already
  2. Place all SVG icons in this directory, named according to their function (e.g., training.svg)
  3. Ensure SVGs are optimized for web use (remove unnecessary metadata)
  4. Document available icons for content authors to reference
  5. Consider creating an icon library page that displays all available icons

This icon system exemplifies EDS's philosophy of adapting to how authors naturally create content, while maintaining high standards for web performance and accessibility.

Styling Rules


Never apply styling to elements with -container suffix in their class names (e.g. blockname-container, section-container). All styling should be applied to either the -wrapper or the block class itself. This rule is crucial because in EDS:

Container elements (.blockname-container) are structural elements that should never receive styling Wrapper elements (.blockname-wrapper) are the appropriate place for layout and positioning styles. Block elements (.blockname) are for block-specific styling

In our current CSS file.

Block Development in Code

Each block corresponds to a specific folder and files in your project structure:

/blocks/{blockname}/
├── {blockname}.js           # Core block functionality
├── {blockname}.css          # Block styles
├── README.md                # Documentation
├── example.md               # Usage examples
├── demo.md                  # Demo content
├── example.json             # Sample data (if needed)
└── example.csv              # CSV version of sample data

This structured organization ensures consistency across blocks and makes maintenance easier. Each file serves a specific purpose:

When documenting code examples in markdown files, remember to use single backticks (not triple backticks) to enclose code snippets for better compatibility.

A basic block implementation looks like:

export default function decorate(block) {
  // Transform the block DOM as needed
  // 'block' is a DOM element with the class 'blockname'
}

CSS for blocks should be isolated to prevent affecting other elements:

.blockname {
  /* Block-specific styles */
}

/* Don't style the container directly */
.blockname-container {
  /* AVOID putting styles here */
}

/* Handle variations through class combinations */
.blockname.variation {
  /* Variation-specific styles */
}
/* Ensure responsiveness */

@media (min-width: 768px) {
  .blockname {
    /* Desktop styles */
  }
}

EDS passes the block's DOM element to the decorate function, allowing you to transform it as needed. This is where you can add interactivity, fetch data, or reorganize the content.

Block Variations

A powerful feature of EDS blocks is the ability to create variations with minimal additional code. When authors add parenthetical options to a block:

| Columns (dark, wide) |

These options become additional CSS classes:

<div class="columns dark wide">

This allows you to create styling variations through CSS without needing separate JavaScript implementations. For example:

/* Base block styling */

.columns {
  display: grid;
  gap: 20px;
}

/* Width variation */

.columns.wide {
  max-width: 1200px;
}

/* Color theme variation */

.columns.dark {
  background-color: #333;
  color: white;
}

/* Combined variations create unique looks */

.columns.dark.wide {
  border: 1px solid #555;
}

This approach provides tremendous flexibility while keeping the codebase maintainable.

Data Integration with Blocks

If your block requires external data, you should follow consistent patterns for data structure. Here's an example of the expected JSON structure for data integration:

{
  "total": 1,
  "offset": 0,
  "limit": 1,
  "data": [
    {
      "path": "/example-path",
      "title": "Example Title",
      "image": "/path/to/image.jpg",
      "description": "Example description",
      "lastModified": "1724942455"
    }
  ],
  "type": "sheet"
}

To access EDS pages dynamically, you can use the query-index.json file available in every folder. This powerful feature enables you to create dynamic components that pull content from across your EDS site.

Extending Functionality Without Modifying Core Files

A key challenge in EDS development is how to extend functionality without modifying the core files. Many teams face common requirements that tempt them to directly edit aem.js or scripts.js:

As the documentation explains: "All of these code elements must be seamlessly integrated into the browser output while maintaining Edge Delivery Services' perfect Core Web Vitals score (100/100/100/100)."

However, modifying core files directly has significant downsides:

The Expander Block Pattern - My Approach

Instead of modifying core files, my approach is to create an "expander block"—a normal block that doesn't modify containing content but includes JavaScript that enhances specific elements after the page is rendered.

For example, here's an implementation of a "code-expander" block that enhances <pre><code> elements on the page:

/**
 * Minimal Code Expander Block
 * This component enhances pre/code elements on the page with:
 * Copy to clipboard functionality - One-click copy with visual feedback
 * Expand/collapse for long code blocks - Toggles visibility for better readability
 * The component works by finding all pre/code elements, wrapping them in a custom
 * container with controls, and adding event listeners for the interactive features.
 * No syntax highlighting is applied - all code is displayed as plain text.
 */

export default async function decorate(block) {
  // Configuration values for the component.
  // Control appearance, behavior thresholds, and text labels.
  const THRESHOLD = 40; // Line count for a "long" code block.
  const COPY_TEXT = 'Copy';
  const COPIED_TEXT = 'Copied!';
  const EXPAND_TEXT = 'Expand';
  const COLLAPSE_TEXT = 'Collapse';

  // Locate all code blocks on the page.
  const codeElements = document.querySelectorAll('pre code');
  if (codeElements.length === 0) return;

  Array.from(codeElements).forEach((codeElement, index) => {
    // Skip if the element is already processed.
    if (codeElement.closest('.code-expander-wrapper')) return;

    // Extract code content and determine if it's a long document.
    const code = codeElement.textContent;
    const isLongDocument = code.split('\n').length > THRESHOLD;

    // Create a wrapper for the enhanced code block.
    const wrapper = document.createElement('div');
    wrapper.className = 'code-expander-wrapper';
    wrapper.dataset.codeIndex = index;

    // Create a header that will contain control buttons.
    const header = document.createElement('div');
    header.className = 'code-expander-header';

    // Create a container for control buttons.
    const buttonGroup = document.createElement('div');
    buttonGroup.className = 'code-expander-buttons';

    // Conditionally add expand/collapse button for long code blocks.
    let expandButton = null;
    if (isLongDocument) {
      expandButton = document.createElement('button');
      expandButton.className = 'code-expander-expand-collapse';
      expandButton.textContent = EXPAND_TEXT;

      // Toggle expansion state on button click.
      expandButton.onclick = () => {
        newPreElement.classList.toggle('expanded');
        expandButton.textContent = newPreElement.classList.contains('expanded')
          ? COLLAPSE_TEXT
          : EXPAND_TEXT;
      };
      buttonGroup.appendChild(expandButton);
    }

    // Add a copy button with clipboard functionality.
    const copyButton = document.createElement('button');
    copyButton.className = 'code-expander-copy';
    copyButton.textContent = COPY_TEXT;
    copyButton.addEventListener('click', async () => {
      try {
        await navigator.clipboard.writeText(code);
        copyButton.textContent = COPIED_TEXT;
        setTimeout(() => {
          copyButton.textContent = COPY_TEXT;
        }, 2000);
      } catch (err) {
        console.error('Error copying content:', err);
      }
    });
    buttonGroup.appendChild(copyButton);

    // Assemble header and wrapper.
    header.appendChild(buttonGroup);
    wrapper.appendChild(header);

    // Create a new pre element for the enhanced display.
    const newPreElement = document.createElement('pre');
    if (isLongDocument) newPreElement.classList.add('collapsible');

    const newCodeElement = document.createElement('code');
    newCodeElement.textContent = code;
    newPreElement.appendChild(newCodeElement);
    wrapper.appendChild(newPreElement);

    // Replace the original code block with the enhanced version.
    const preElement = codeElement.parentNode;
    const container = document.createElement('div');
    preElement.parentNode.replaceChild(container, preElement);
    container.appendChild(wrapper);
  });
}

Note the key aspects of this implementation:

This pattern allows you to extend functionality without the risks associated with modifying core files.

When developing with EDS, you should follow specific coding standards to ensure your code is maintainable and compatible with future updates:

// Use configuration constants at the top of your code

const BLOCKNAME_CONFIG = {
  BOOK_TITLE: 'Code',
  ERROR_MESSAGE: 'Error loading content. Please try again.',
  COPY_BUTTON_RESET_DELAY: 2000,
  LONG_DOCUMENT_THRESHOLD: 40,
  // Add other configuration options here
};

When writing code that uses console output, remember to precede it with:

// eslint-disable-next-line no-console

console.log('Debug information');

This prevents ESLint errors while maintaining the ability to use console logging for debugging purposes.

Common Implementation Challenges and Solutions

Teams developing with EDS often encounter similar challenges. Here are practical solutions to common problems:

Challenge: Analytics Implementation

Problem: Adding analytics without modifying core files.

Solution: Use the delayed.js file for analytics scripts:

// In delayed.js

(function() {
  // Create script element
  const script = document.createElement('script');
  script.async = true;
  script.src = 'https://www.googletagmanager.com/gtag/js?id=UA-XXXXXXXX-X';
  document.head.appendChild(script);

  // Initialize analytics

  window.dataLayer = window.dataLayer || [];
  function gtag() { window.dataLayer.push(arguments); }
  gtag('js', new Date());
  gtag('config', 'UA-XXXXXXXX-X');


  // Add custom event tracking

  document.addEventListener('click', e => {
    const target = e.target.closest('a, button');
    if (!target) return;



    const trackingData = {
      event_category: target.tagName.toLowerCase(),
      event_label: target.innerText || target.textContent,
    };

    if (target.href) {
      trackingData.outbound = !target.href.includes(window.location.hostname);
    }

    gtag('event', 'click', trackingData);
  });
})();

Challenge: Dynamic Content from External APIs

Problem: Incorporating content from external services.

When integrating with external data sources or the EDS query-index.json, you should follow a consistent pattern for data structures. Here's an example of the expected JSON structure for data integration:

{

  "total": 1,
  "offset": 0,
  "limit": 1,
  "data": [
    {
      "path": "/example-path",
      "title": "Example Title",
      "image": "/path/to/image.jpg",
      "description": "Example description",
      "lastModified": "1724942455"
    }
  ],
  "type": "sheet"
}

Solution: Create a specialized block that fetches and formats the content:

import readBlockConfig from 'scripts/aem.js';

export default async function decorate(block) {
  const config = readBlockConfig(block);
  const apiUrl = config.apiUrl || 'https://api.example.com/data';
  try {
    // Clear initial content.
    block.textContent = '';

    // Show loading state.
    const loading = document.createElement('div');
    loading.className = 'loading-indicator';
    loading.textContent = 'Loading content...';
    block.appendChild(loading);

    // Fetch data from the API.
    const response = await fetch(apiUrl);
    if (!response.ok) {
      throw new Error(`API returned ${response.status}`);
    }
    const data = await response.json();

    // Remove loading state.
    loading.remove();

    // Render dynamic content.
    const container = document.createElement('div');
    container.className = 'dynamic-content';
    data.items.forEach((item) => {
      const itemEl = document.createElement('div');
      itemEl.className = 'dynamic-item';

      const title = document.createElement('h3');
      title.textContent = item.title;
      itemEl.appendChild(title);

      const desc = document.createElement('p');
      desc.textContent = item.description;
      itemEl.appendChild(desc);

      container.appendChild(itemEl);
    });

    block.appendChild(container);
  } catch (error) {
    console.error('Error loading dynamic content:', error);
    // Clear block and display error state.
    block.textContent = '';
    const errorEl = document.createElement('div');
    errorEl.className = 'error-state';
    errorEl.textContent = 'Unable to load content. Please try again later.';
    block.appendChild(errorEl);
  }
}

Problem: Implementing cookie consent without modifying core files.

Solution: Create a cookie-consent block that's included in the template:

export default function decorate(block) {

  // Hide the original block
  block.style.display = 'none';

  // Check if consent already given
  if (localStorage.getItem('cookie-consent') === 'accepted') {
    // Consent already given, enable cookies/tracking
    enableTracking();
    return;
  }

  // Create consent banner
  const banner = document.createElement('div');
  banner.className = 'cookie-consent-banner';
  banner.innerHTML = `
    <div class="cookie-content">
      <p>This website uses cookies to ensure you get the best experience.
      <a href="/privacy-policy">Learn more</a></p>
      <div class="cookie-buttons">
        <button class="accept-button">Accept</button>
        <button class="decline-button">Decline</button>
      </div>
    </div>
  `;

  // Add event listeners

  banner.querySelector('.accept-button').addEventListener('click', () => {
    localStorage.setItem('cookie-consent', 'accepted');
    banner.remove();
    enableTracking();
  });


  banner.querySelector('.decline-button').addEventListener('click', () => {
    localStorage.setItem('cookie-consent', 'declined');
    banner.remove();
  });

    // Add to page
  document.body.appendChild(banner);
}

function enableTracking() {
  // Load analytics and other tracking scripts
  const script = document.createElement('script');
  script.src = '/scripts/tracking.js';
  document.head.appendChild(script);
}

Challenge: Personalization

Problem: Implementing personalization without complex frameworks.

Solution: Use local storage for simple personalization:

export default function decorate(block) {
  // Get or create user profile
  let userProfile = JSON.parse(localStorage.getItem('user-profile')) || {};

  // Track page visits
  userProfile.pageVisits = userProfile.pageVisits || [];
  userProfile.pageVisits.push({
    path: window.location.pathname,
    timestamp: Date.now(),
  });

  // Limit history length
  if (userProfile.pageVisits.length > 20) {
    userProfile.pageVisits = userProfile.pageVisits.slice(-20);
  }

  // Determine interests based on page visits
  const interests = determineInterests(userProfile.pageVisits);
  userProfile.interests = interests;

  // Save updated profile
  localStorage.setItem('user-profile', JSON.stringify(userProfile));

  // Personalize content
  personalizeContent(block, userProfile);
}
function determineInterests(pageVisits) {
  // Simple interest determination based on URL patterns
  const interests = {};
  pageVisits.forEach(visit => {
    if (visit.path.includes('/products/')) {
      interests.products = true;
    } else if (visit.path.includes('/services/')) {
      interests.services = true;
    } else if (visit.path.includes('/blog/')) {
      interests.blog = true;
    }
  });
  return interests;
}

function personalizeContent(block, userProfile) {

  // Clear block contents
  block.textContent = '';

  // Generate personalized content based on interests
  const heading = document.createElement('h2');
  heading.textContent = userProfile.interests.products
    ? 'Products You Might Like'
    : 'Our Popular Products';
  block.appendChild(heading);

  // ... additional personalized content ...
}

These practical solutions demonstrate how to implement common requirements within EDS's architectural constraints, without modifying core files or compromising performance.

CSS Best Practices

CSS Injection and Selector Patterns

When developing blocks in EDS, remember that block-specific CSS is injected only when the block is present on the page. This means you don't need to use complex selectors like `:has()` or sibling selectors (`~`, `+`) to target elements when the block is present. Instead, use direct selectors since the CSS will only be loaded when the block exists. For example, if you need to hide the header and footer when your block is present, simply use `header, footer { display: none; }` rather than complex selectors like `header:has(+ .your-block)`. This approach is more maintainable, performs better, and follows the principle that block CSS is scoped to its specific use case.

More CSS Rules

/* Block-specific styles should be isolated */

.myblock {
  /* Only apply to elements within .myblock */
  padding: 20px;
}

/* Don't let selectors become too complex */

.myblock > div > div > p {
  /* AVOID: Too specific and fragile */
}

/* Mobile-first approach without initial media queries */
myblock.columns {
  display: grid;
  grid-template-columns: 1fr;
  gap: 20px;
}

/* Standard breakpoints at 600px, 900px, 1200px */

@media (min-width: 600px) {
  .columns {
    grid-template-columns: repeat(2, 1fr);
  }
}

@media (min-width: 900px) {
  .columns {
    grid-template-columns: repeat(3, 1fr);
  }
}

/* Use CSS variables for theming and configuration */

:root {
  --primary-color: #1473e6;
  --heading-font: 'Adobe Clean', sans-serif;
  --body-font: 'Adobe Clean', sans-serif;
  --spacing-m: 16px;
}

myblock.button {
  background-color: var(--primary-color);
  font-family: var(--body-font);
  padding: var(--spacing-m);
}

Key principles to follow:

EDS JavaScript Best Practices

The JavaScript approach in EDS emphasizes simplicity and performance. It's recommended to adhere to Airbnb's JavaScript Style Guide to ensure clean, maintainable code. This widely-adopted style guide provides consistent conventions for variable naming, function declarations, object creation, conditional statements, error handling, and comments.

// Configuration variables at the top

const CONFIG = {
  ANIMATION_DURATION: 300,
  MAX_ITEMS: 12,
  API_ENDPOINT: '/query-index.json',
};

// Use async/await for cleaner asynchronous code
export default async function decorate(block) {
  try {
    // Fetch data asynchronously

    const response = await fetch(CONFIG.API_ENDPOINT);
    const data = await response.json();

    // Process data

    const filteredItems = data.data
      .filter(item => item.type === 'blog')
      .slice(0, CONFIG.MAX_ITEMS);
    // Update UI
    renderItems(block, filteredItems);
  } catch (error) {
    // Handle errors gracefully
    // eslint-disable-next-line no-console
    console.error('Error loading content:', error);
    renderErrorState(block);
  }
}

// Break logic into focused functions

function renderItems(block, items) {
  // Clear existing content
  block.textContent = '';

  // Create container
  const container = document.createElement('div');
  container.className = 'items-container';

  // Add items
  items.forEach(item => {
    container.appendChild(createItemElement(item));
  });

  // Add to DOM
  block.appendChild(container);
}

function createItemElement(item) {
  // Create element for single item
  // ...
}

function renderErrorState(block) {
  // Show user-friendly error state
  // ...
}

Key principles:

Content Structure Best Practices

How content is structured in documents significantly impacts both authoring experience and website performance:

Documentation Best Practices

Comprehensive documentation is crucial for block maintainability:

/blocks/myblock/
├── myblock.js
├── myblock.css
├── README.md           # Comprehensive documentation
├── example.md          # Simple copy-paste example for devs
└── demo.md             # More complex real-world usage examples

README.md should include:

This comprehensive documentation approach ensures both developers and content authors can effectively work with your blocks.

Advanced Techniques

Dynamic Content with Query Index

EDS provides a powerful indexing system for creating dynamic content:

async function loadContent() {
  try {
    // Fetch the indexed content from the endpoint.
    const response = await fetch('/query-index.json');
    if (!response.ok) {
      throw new Error(`Failed to fetch data: ${response.status}`);
    }

    // Await the parsing of the JSON response.
    const data = await response.json();

    // Filter for items with a '/blogs/' path.
    const filteredItems = data.data.filter((item) =>
      item.path.includes('/blogs/')
    );

    // Sort items based on the lastModified date in descending order.
    const sortedItems = filteredItems.sort((a, b) =>
      new Date(b.lastModified) - new Date(a.lastModified)
    );

    // Generate HTML for each item.
    const html = sortedItems
      .map(
        (item) => `
      <article>
        <h3><a href="${item.path}">${item.title}</a></h3>
        <p>${item.description}</p>
      </article>
    `
      )
      .join('');

    // Update the container's innerHTML with the generated content.
    container.innerHTML = html;
  } catch (error) {
    console.error('Error loading content:', error);
  }
}

loadContent();

This technique is used in the BlogList block to create dynamic content listings without requiring authors to manually update links.

Auto Blocking

Auto blocking programmatically creates blocks based on content patterns:

function buildHeroBlock(main) {
  const h1 = main.querySelector('h1');
  const picture = main.querySelector('picture');
  // If h1 follows picture in the DOM
  if (h1 && picture && (h1.compareDocumentPosition(picture) & Node.DOCUMENT_POSITION_PRECEDING)) {
    const section = document.createElement('div');
    section.append(buildBlock('hero', { elems: [picture, h1] }));
    main.prepend(section);
  }
}

This allows you to automatically enhance document patterns without requiring authors to create block tables.

Important note

When creating, or modifying blocks, treat the following files as read-only

styles/
├── fonts.css
├── lazy-styles.css
└── styles.css
fonts/
├── roboto-bold.woff2
└── roboto-regular.woff2
scripts/
├── aem.js
├── delayed.js
└── scripts.js

Block Examples

To help you get started with EDS development, here are some additional block implementations showcasing different patterns and techniques.

A simple block that fetches and displays random quotes:

export default async function decorate(block) {
    const fortuneCookieElement = document.querySelector('.fortunecookie');
    const url = '/data/cookies.json';
    try {
        const response = await fetch(url);
        const data = await response.json();
        const dataArray = data.data;
        const randomIndex = Math.floor(Math.random() * dataArray.length);
        const randomItem = dataArray[randomIndex];
        const content = `<p><strong>${randomItem.key}:</strong> ${randomItem.value}</p>`;
        fortuneCookieElement.innerHTML = content;
    } catch (error) {

        // eslint-disable-next-line no-console
        console.error('Error fetching the JSON data:', error);
    }
}

This block demonstrates fetching JSON data and using it to update content dynamically.

Index Block

A block that builds a table of contents for the page:

export default function decorate(block) {
  const headers = document.querySelectorAll('h1, h2, h3, h4, h5, h6');
  const indexBlock = document.querySelector('.index');

  // Create the index header
  const indexHeader = document.createElement('div');
  indexHeader.className = 'index-header';
  indexHeader.innerHTML = `
    <span>Index</span>
    <i class='arrow down'></i>
  `;


  // Create the index content container
  const indexContent = document.createElement('div');
  indexContent.className = 'index-content';

  // Append the index header and content container to the index block
  indexBlock.appendChild(indexHeader);
  indexBlock.appendChild(indexContent);
  let isIndexBuilt = false; // Flag to track if the index has been built
  indexHeader.addEventListener('click', () => {
    if (!isIndexBuilt) {
      buildIndex();
      isIndexBuilt = true; // Set the flag to true after building the index
      indexContent.style.display = 'none';
    }

    if (indexContent.style.display === 'none') {
      indexContent.style.display = 'block';
      indexHeader.querySelector('.arrow').style.transform = 'rotate(-135deg)';
    } else {
      indexContent.style.display = 'none';
      indexHeader.querySelector('.arrow').style.transform = 'rotate(45deg)';
    }
  });

  function buildIndex() {
    const indexContent2 = document.querySelector('.index-content');

    const ul = document.createElement('ul');
    headers.forEach((header, index) => {
      const id = `header-${index}`;
      header.id = id;
      const li = document.createElement('li');
      li.style.marginLeft = `${(parseInt(header.tagName[1], 10) - 1) * 20}px`;
      const a = document.createElement('a');
      a.href = `#${id}`;
      a.textContent = header.textContent;
      li.appendChild(a);
      ul.appendChild(li);
    });
    indexContent2.innerHTML = '';
    indexContent2.appendChild(ul);
  }
}

The CSS for this block creates a collapsible interface:

.index {
    background-color: #f5f5f5;
    border: 1px solid #ccc;
    border-radius: 4px;
    padding: 10px;
    cursor: pointer;
}

.index-header {
    display: flex;
    align-items: center;
    justify-content: space-between;
}

.arrow {
    border: solid black;
    border-width: 0 2px 2px 0;
    display: inline-block;
    padding: 3px;
    transition: transform 0.3s;
}

.down {
    -webkit-transform: rotate(45deg);
    transform: rotate(45deg);
}

.index-content {
    display: none;
    margin-top: 10px;
}

.index-content ul {
    list-style-type: none;
    padding: 0;
}

.index-content ul li {
    margin-bottom: 5px;
}

.index-content ul li a {
    text-decoration: none;
    color: #333;
}

This block demonstrates:

Return To Top Block

A utility block that provides a "scroll to top" button:

export default async function decorate(block) {
  const returnToTopButton = document.querySelector('.returntotop');
  window.addEventListener('scroll', () => {
    if (window.scrollY > 100) {
      returnToTopButton.style.display = 'block';
    } else {
      returnToTopButton.style.display = 'none';
    }
  });

  // Scroll to top when the button is clicked
  returnToTopButton.addEventListener('click', () => {
    window.scrollTo({
      top: 0,
      behavior: 'smooth',
    });
  });

}

With accompanying CSS:

.returntotop {
    position: fixed;
    bottom: 20px;
    right: 20px;
    padding: 10px 20px;
    background-color: #007BFF;
    color: white;
    cursor: pointer;
    text-align: center;
    border-radius: 5px;
    text-decoration: none;
    font-size: 14px;
    display: none;
}

.returntotop:hover {
    background-color: #0056b3;
}

This simple utility block demonstrates:

These examples showcase the variety of functionality that can be implemented as blocks in Edge Delivery Services, from content enhancement to user interface improvements, all without modifying core files.

Conclusion

Document-First Content Management

EDS fundamentally reverses the traditional CMS paradigm—instead of forcing authors to adapt to technical constraints, it adapts technical implementation to how authors naturally work. This philosophical shift has profound implications:

As the documentation states: "In an ideal situation the majority of content is authored outside of blocks, as introducing tables into a document makes it harder to read and edit." This content-first approach challenges the component-first mentality that dominates most CMS platforms.

Simplicity Over Complexity

Throughout EDS's implementation, there's a relentless focus on simplicity:

This simplicity-first approach delivers tremendous benefits in terms of maintainability, performance, and developer onboarding. Rather than relying on complex toolchains and frameworks, EDS pushes developers to solve problems directly with fundamental web technologies.

Performance by Design

EDS doesn't treat performance as an afterthought or something to be optimized later—it's built into the core architecture:

This architecture consistently delivers perfect Lighthouse scores (100/100/100/100), something many development teams struggle to achieve even with significant optimization efforts.

Empowering Both Authors and Developers

The EDS approach creates a system where:

This balance is rare in content management systems, which tend to prioritize either developer experience or author experience at the expense of the other.

The Expander Pattern for Extension

Perhaps most importantly, EDS promotes the "expander" pattern for extending functionality without modifying core files. This pattern:

By embracing this pattern, development teams can add sophisticated functionality—analytics, personalization, third-party integrations—without the risk and maintenance burden of modifying core files.

Using this document with AI

This post formatted as markdown can assist in building EDS Components using AI tools like cursor and claude. A shorter version is here https://allabout.network/docs/eds.txt

Add the MD file/ text file (your choice) to docs in cursor settings -> features -> docs.




It will then be able to be referenced during Cursor Chats

If you prefer to use Claude Projects, add the markdown as project knowledge, other IDEs/AI use similar patterns.

Now that you have the AI assistant setup you can create new block by setting up the block structure and populating it with a README.md explaining the functionality to the reader (The AI in this case)

As an example we might want to create a markdown block

# Markdown Block

This block processes and displays markdown content within a styled container.

## Usage

To use the Markdown block, create a table in your document with "Markdown" in the first cell. The content in the cells below will be processed as markdown and displayed in a light blue box with rounded corners and a 2px thick border.

| Markdown |

|----------|

| Your markdown content here |

## Authoring

When creating content for the Markdown block in Google Docs or Microsoft Word:

1. Create a table with at least two rows.

2. In the first cell of the first row, type "Markdown".

3. In the cells below, add your markdown content.

4. The block will automatically process and display the markdown content.

## Styling

The Markdown block uses CSS variables for easy customization:

- `--markdown-bg-color`: Background color of the container (default: light blue)

- `--markdown-border-color`: Border color of the container (default: blue)

- `--markdown-border-radius`: Border radius of the container (default: 8px)

- `--markdown-padding`: Padding inside the container (default: 20px)

Create this in /blocks/markdown/README.md then ask the AI to implement it.

No doubt you will make adjustments as the AI does it work, at the end ask it to update/blocks/READMe.md and you will have developer and content author documentation.

The Richness and Versatility of the EDS System

Beyond its streamlined, document-first authoring approach, the EDS system reveals a wealth of advanced features that empower both content authors and developers to build truly complex digital experiences. While at first glance EDS might appear to be tailored primarily for brochureware sites, its robust functionality extends far beyond that.

EDS’s inherent richness is evident in its comprehensive support for features such as headers, global metadata, and folder structures that accommodate varied use cases. The platform also provides overlays and a repo-less architecture, ensuring that even when content requirements evolve or become more intricate, the underlying system remains flexible and capable. These enhancements allow for sophisticated content modeling, dynamic personalization, and advanced SEO configurations without sacrificing the system’s core principles of simplicity and performance.

Additionally, the multi-stage transformation—from document to Markdown, then to optimized HTML with progressive enhancements—coupled with performance-first techniques like the E-L-D (Eager-Lazy-Delayed) loading strategy, exemplifies how EDS delivers rich, interactive experiences while maintaining excellent Core Web Vitals scores. This blend of high-performance optimization and extensive feature support ensures that EDS is not only accessible to non-technical content authors but also provides a deep toolkit for developers seeking to implement custom, high-value functionality.

Universal Editor Support for Adobe Document Authoring

Did you know that Adobe Document Authoring (also known as Dark Alley) for Edge Delivery Services now supports Universal Editor? This exciting new development means you now have two different ways to edit the same content, greatly enhancing flexibility and choice for content creators.

Adobe invites you to try it out at https://da.live/. Keep in mind that this feature is brand new, and Adobe welcomes your feedback and inquiries. Please feel free to share your insights or ask any questions on the AEM Discord at https://discord.com/channels/1131492224371277874/1281270255427256544

In summary, the EDS system is a versatile and feature-rich platform that adapts to complex requirements and diverse content scenarios, making it a powerful solution for modern web delivery. The addition of Universal Editor support further underscores Adobe’s commitment to providing innovative, flexible authoring tools that bridge the gap between technical excellence and user-friendly content creation.

Final Thoughts

Edge Delivery Services represents a refreshing perspective in web development—one that challenges many contemporary assumptions about how websites should be built and managed. By embracing document-based authoring, prioritizing performance by design, and promoting clean separation between content and code, EDS delivers a compelling alternative to traditional CMS platforms.

For developers accustomed to component-based systems and complex build processes, EDS might initially feel constraining. However, these constraints often foster creativity and focus attention on solving real problems rather than managing tooling complexity. The result is websites that are faster, more maintainable, and more author-friendly.

As you implement your own EDS projects, remember these key principles:

By following these principles, you'll create websites that achieve the rare combination of excellent performance, maintainable code, and superior authoring experience that Edge Delivery Services makes possible.

For more information, resources, and updates visit https://allabout.network/blogs/ddt/

I keep allabout.network AI aware at https://allabout.network/llms.txt

<hr>

About the Author: Tom Cranstoun is a seasoned AEM expert with over 13 years of experience, including roles as a Global Architecture Director and solution architect for major projects like Nissan and Renault's Helios initiative. Now running his own consultancy, Tom continues to work with top brands and agencies, bringing his expertise in AEM and emerging technologies to the forefront of digital experiences.

Thanks for reading.

Digital Domain Technologies provides expert Adobe Experience Manager (AEM) consultancy. We have collaborated with some of the world's leading brands across various AEM platforms, including AEM Cloud, on-premise solutions, Adobe Managed Services, and Edge Delivery Services. Our portfolio includes partnerships with prominent companies such as Twitter (now X), EE, Nissan/Renault Alliance Ford, Jaguar Land Rover, McLaren Sports Cars, Hyundai Genesis, and many others.

/fragments/ddt/proposition
style
bg-dark

Related Articles

guide
Back to Top
